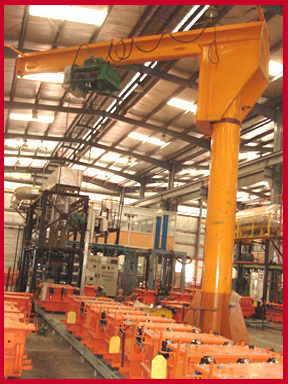

Mast fabricated from Pipe/Rolled Steel sections.
M.S. Gusset plates/thick base plate giving added rigidity to column.
Base Plate readily drilled to take Six/Eight/t/Twelve holding down bolts.
JIB arm fabricated from heavy section 1 beam for 3600 and triangular truss construction for 3600 type of Jib cranes-reduces diflection to acceptable limits.
Bearing Rollers self aligned type bearings with trust rollers/trust bearing take care of horizontal and vertical loadings as well as radial thrust.
Swivelling-Through chain at the end of Jib arm and/or hand cranking for easy manual swivelling for 3600 type jib crane, on request.
For positive slewing full 3600 rotation duly insulated brass slipring with pentograph current collectors is provided.
|
CAPACITY (TONNE) |
RADIUS OF JIB A (M) |
LIFTING HEIGHT C (M) |
OVER ALL HEIGHT (B) (MM) |
BEAM SIZE ISMB |
PILAR SIZE (MM) |
BASE PLATE (E) (MM) |
BR (MM) |
ANCHOR BOLTS (MM) |
NET WT. KGS. |
| 0.25 | 3.0 | 3.0 | 3900 | 200 | 220 | 800 | 700 | 25.4 mm | 555 |
| 4.0 | 3.0 | 3950 | 250 | 220 | 800 | 700 | 25.4 mm | 620 | |
| 5.0 | 3.0 | 3950 | 250 | 275 | 900 | 800 | 25.4 mm | 845 | |
| 6.0 | 3.0 | 4000 | 300 | 275 | 900 | 800 | 25.4 mm | 915 | |
| 0,50 | 3.0 | 3.0 | 3950 | 250 | 275 | 900 | 800 | 28 mm | 740 |
| 4.0 | 3.0 | 4000 | 300 | 325 | 900 | 800 | 28 mm | 880 | |
| 5.0 | 3.0 | 4050 | 350 | 325 | 1000 | 900 | 28 mm | 980 | |
| 6.0 | 3.0 | 4150 | 450 | 325 | 1000 | 900 | 28 mm | 1200 | |
| 1.0 | 3.0 | 3.0 | 4100 | 300 | 355 | 950 | 850 | 32 mm | 870 |
| 4.0 | 3.0 | 4200 | 400 | 355 | 1000 | 900 | 32 mm | 910 | |
| 5.0 | 3.0 | 4250 | 450 | 410 | 1000 | 900 | 32 mm | 980 | |
| 6.0 | 3.0 | 4300 | 500 | 410 | 1050 | 950 | 32 mm | 1200 | |
| 2.0 | 3.0 | 4.0 | 5300 | 400 | 410 | 1000 | 900 | 32 mm | 985 |
| 4.0 | 4.0 | 5350 | 450 | 460 | 1000 | 900 | 32 mm | 1580 | |
| 5.0 | 4.0 | 5400 | 500 | 460 | 1100 | 1000 | 32 mm | 1685 | |
| 6.0 | 4.0 | 5450 | 550 | 460 | 1100 | 1000 | 32 mm | 1950 | |
| 3.0 | 3.0 | 4.0 | 5400 | 450 | 460 | 1100 | 1000 | 38 mm | 1400 |
| 4.0 | 4.0 | 5450 | 500 | 510 | 1150 | 1000 | 38 mm | 1840 | |
| 5.0 | 4.0 | 5500 | 550 | 510 | 1150 | 1000 | 38 mm | 1880 | |
| 6.0 | 4.0 | 5550 | 600 | 610 | 1200 | 1050 | 38 mm | 1900 | |
| 5.0 | 3.0 | 4.0 | 5700 | 600 | 1200 | 1050 | 50 mm | 1860 | |
| 4.0 | 4.0 | 5560 | 450x mc-250x120x10 Plate | 610 | 1400 | 1150 | 50 mm | 2400 | |
| 5.0 | 4.0 | 5600 | 500x mc-250x120x10 Plate | 660 | 1500 | 1300 | 50 mm | 2500 | |
| 6.0 | 4.0 | 5600 | 500x mc-250x120x10 Plate | 660 | 1500 | 1300 | 50 mm | 2920 | |
