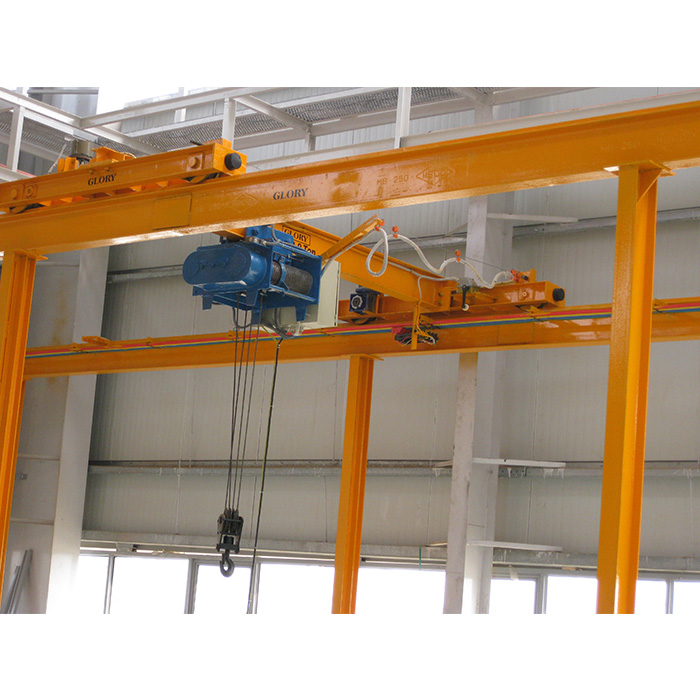

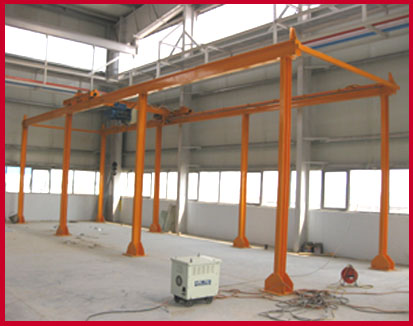

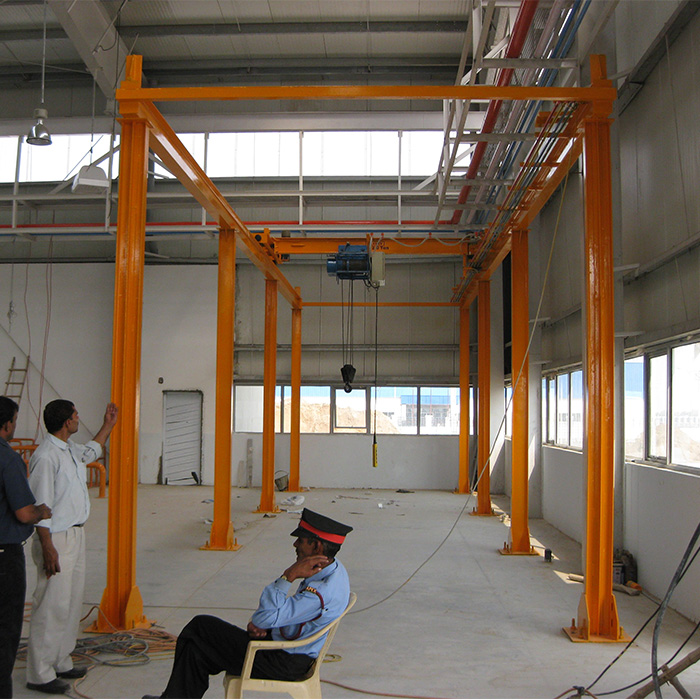

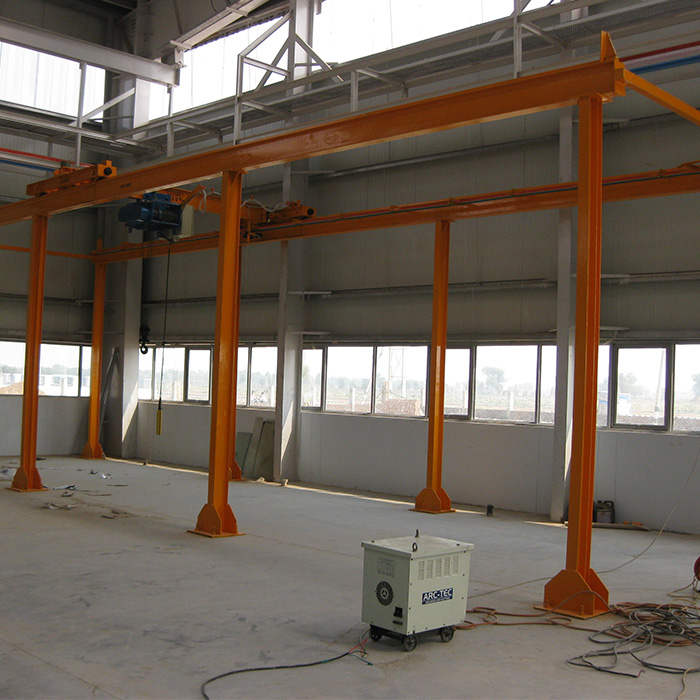

Single Girder EOT Crane Independent Structure

Specification

Capacity (T)	Span (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E1/E2 (mm)	Wheel Load (MT)	Net Wt. Load (MT)
1.0	8000	650	650	900	700	250	1.0	1.6
	10000	750	650	900	700	250	1.1	2.0
	15000	800	650	900	700	250	1.3	3.0
	20000	800	650	900	700	250	1.6	4.1
2.0	8000	750	800	900	700	250	1.6	2.0
	10000	800	800	900	700	250	1.6	2.1
	15000	800	800	900	700	250	1.9	3.4
	20000	800	800	900	700	250	2.3	4.8
3.0	8000	800	900	1000	700	250	2.1	2.0
	10000	800	900	1000	700	250	2.2	2.5
	15000	900	900	1000	700	250	2.6	4.1
	20000	1000	900	1000	700	250	3.2	6.3
5.0	8000	800	1100	1200	900	300	3.4	2.9
	10000	850	1100	1200	900	300	3.4	3.1
	15000	1000	1100	1200	900	300	4.0	5.6
	20000	1100	1100	1200	900	300	4.5	7.4
7.5	8000	850	1400	1250	1000	300	4.9	3.6
	10000	900	1400	1250	1000	300	5.0	4.2
	15000	1000	1400	1250	1000	300	5.5	6.2
	20000	1200	1400	1250	1000	300	6.1	8.5
10.0	8000	800	1600	1400	1000	300	6.3	4.4
	10000	900	1600	1400	1000	300	6.4	5.0
	15000	1200	1600	1400	1000	300	7.0	7.2
	20000	1300	1600	1400	1000	300	7.5	9.3
15.0	8000	1000	1900	1500	1100	300	9.4	6.0
	10000	1100	1900	1500	1100	300	9.5	6.5
	15000	1250	1900	1500	1100	300	10.0	9.0
	20000	14oo	1900	1500	1100	300	11.0	12.0
