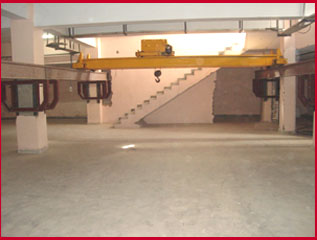

Glory Elevators (India) Pvt. Ltd. | Double Girder EOT Crane

Capacity (Main)	Span	Side Clearance	Max. Main Hook Position from Rail Top	Hook Approach		Headroom from Rail Top to Crane Top	Wheel Base	Weight of Crane	Maximum Wheel Load
(TON)	S (mm)	A (mm)	C (mm)	DSL Side	Opposite Side	D (mm)	E (mm)	(TON)	(TON)
5	10500	250	300	800	750	1650	3000	9.0	5.5
	14000	250	300	800	750	1650	3600	11.2	6.2
	16500	250	300	800	750	1700	3550	12.7	6.5
	19500	250	350	800	750	1650	3800	15.2	7.2
	22500	250	250	800	750	1750	4000	19.4	8.3
7.5	10500	250	450	800	800	1650	3000	9.8	7.2
	14000	250	350	800	800	1750	3500	12.0	7.7
	16500	250	250	800	800	1850	3500	14.6	8.5
	19500	250	200	800	800	1800	3700	17.6	9.2
	22500	250	200	800	800	1800	4000	20.5	10.0
10	10500	250	425	850	800	1700	3700	10.5	8.3
	14000	250	325	850	800	1800	3700	12.5	9.1
	16500	250	225	850	800	1900	3800	15.2	9.7
	19500	250	275	850	800	1850	3900	18.2	10.3
	22500	250	175	850	800	1950	4000	21.0	11.1
15	10500	250	775	850	1000	1950	3900	12.0	11.7
	14000	250	675	850	1000	2050	4000	14.5	12.5
	16500	250	575	850	1000	2150	4000	16.8	13.1
	19500	250	550	850	1000	2175	4000	21.0	14.2
	22500	250	425	850	1000	2300	4000	24.5	15.2
20	10500	250	700	850	1050	2100	4000	14.5	14.1
	14000	250	600	1000	1050	2200	4000	16.5	15.0
	16500	250	600	1000	1050	2200	4200	18.5	15.3
	19500	250	500	1000	1050	2300	4200	23.3	16.6
	22500	250	500	1000	1050	2300	4200	27.0	17.8
